[BLOG] Networking Functions on FPGA

This is a short note on networking functions on FPGA, as I am implementing some of them on FPGA, such as fast packet classification, flow table, network intrusion detection, etc.

NoC on FPGA

Basics

• MAC address table (MAT): a table that maps MAC addresses to ports in switch. It sends out ETH frames to target port w/o flooding (i.e., broadcasting).
  • A SoC NoC may not have MAT, as it is designed for on-chip communication instead of ethernet networking.
• NoC router: typically stateless for better efficiency
  • A router can be stateful with Flow Table (FT) for flow control, to manage congestion and prioritize certain traffic flows between PEs. FT maps dataflow to routing rules or decisions.
  • Functions in NoC router:
    • Data processing: compression, aggregation, checksum error detection/correction
    • Traffic control: packet scheduling, load balancing, virtual channel management

Example: TAPA NoC

• NoC router in HLS C++: Users need to write nested conditions to check the states of the FIFO queues, and decide which FIFO to read/write.

// PE connected to a router (diagram)
// [   NoC   ] <- node_in/node_out -> [ router ]  <- pe_in/pe_out -> [   PE   ]
template <int index> void router(istream<Pkt>& node_in, istream<Pkt>& pe_in,
    ostream<Pkt>& node_out, ostream<Pkt>& pe_out) {
  while (!pe_in.eot() ) {
    if (!pe_in.empty()) {
      node_out.write( pe_in.read() );
      if (!node_in.empty() && IsForThisNode( node_in.peek() ))
        Pkt pkt = node_in.read() ;
        auto data = decompression(pkt.data); // actual computation
        pe_out.write(data)
      } else if (!node_in.empty()) {
        Pkt pkt = node_in.read() ;
        if (pkt.dst == PE_ADDR)
          pe_out.write(pkt);
        else
          node_out.write(pkt);
      }
  }
}

• A new programming interface to decouple static conditionals from the core compute logic. The router function only contains the actually compute logic (i.e., decompression)

Pkt = hcl.Struct(
  data = Array[8, UInt[8]],
  dst = UInt[8]
)

def router(node_in: Pkt, node_out: Pkt):
    node_out = decompression(node_in)

# A ring NoC with N routers/PEs
for i in range(N):
    # 1. router data movement (to PE or next router)
    s.to(router[i].node_out, PE[i].data_in, when={router[i].node_in.dst == i})
    s.to(router[i].node_in, PE[(i+1)%N].node_in, when={router[i].node_in.dst !=i})

    # 2. PE data movement (to another PE)
    s.to(PE[i].data_out, router[i].node_in)

FPGA-based NIDS (Network Intrusion Detection System)

NIDS/Networking Basics

• IDS/IPS detection/prevention mode

  • The suspicious packet can be logged and/or blocked (in IPS)
  • IPS needs to be at line-rate, while IDS can run at lower speed asynchronously as a backup tap

• Snort 3.0 with new Hyperscan x86-optimized string/RegEx matcher

  • Not reaching 100 Gbps line-rate with 100K flows
  • Snort rule-based IDS examples

alert tcp any any → 172.198.2.1/32 333 (content: “ieca|
    4a4b|”; msg: “mounted success”;)

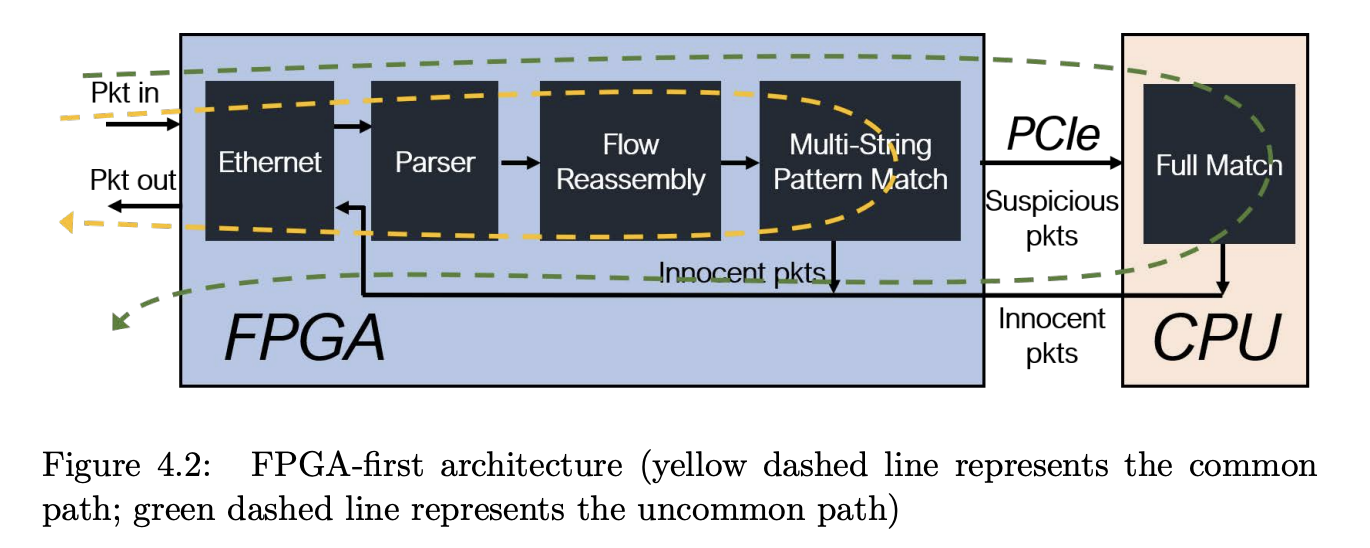

# Snort IDS pipeline
1. Parser (metadata: IPs, ports, etc.)
2. Reassembly (tracking flow states, reorder OOO packets)
3. MSPM (multi-pattern string matching) fast patterns in parallel
4. Full matching (RegEx, non-fast patterns etc.)
5. Action

• TCP flow state to ensure the integrity of the packets in transmission: e.g., sequence number

Implementation: Fast MSPM

• Pigasus Chapter 6. P75: FPGA is chosen as it is low-latency (no PCIe overhead), low-power, reconfigurable, and allowing fine-grained parallelism

• MSPM on FPGA:

  • Classic FSM-based approach: NFA (non-deterministic finite automata) or DFA (deterministic finite automata)

• Dynamic Programming (DP) based approximate matching (AM)

  • Families of FPGA-Based Algorithms for Approximate String Matching
  • String matching, protein sequence alignment, etc. like Smith-Waterman, Needleman-Wunsch, etc.
  • These approaches cannot reach line-rate in real-time latency-sensitive network environment
